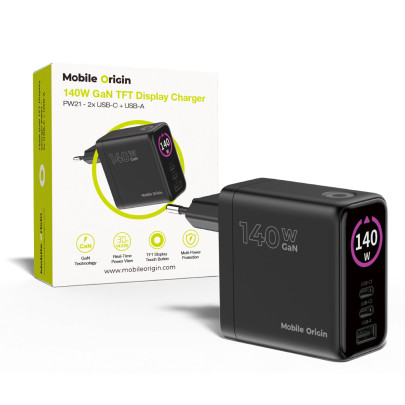

140W GaN TFT Display Charger PW21 - 2x USB-C + USB-A

Display control at the touch of a button!

Discover the new generation of charging with the PW21 140W GaN charger. Thanks to modern GaN technology, this compact charger offers a maximum power of up to 140W, which is clearly displayed on its integrated display.

Simply press the button and switch between displays - the current charging power of the individual USB ports, active thermal protection monitoring, the total power and the charging time.

If you press and hold the button, the display will rotate by 180°. During charging, the display automatically turns off after 1 minute without changing the displayed information.

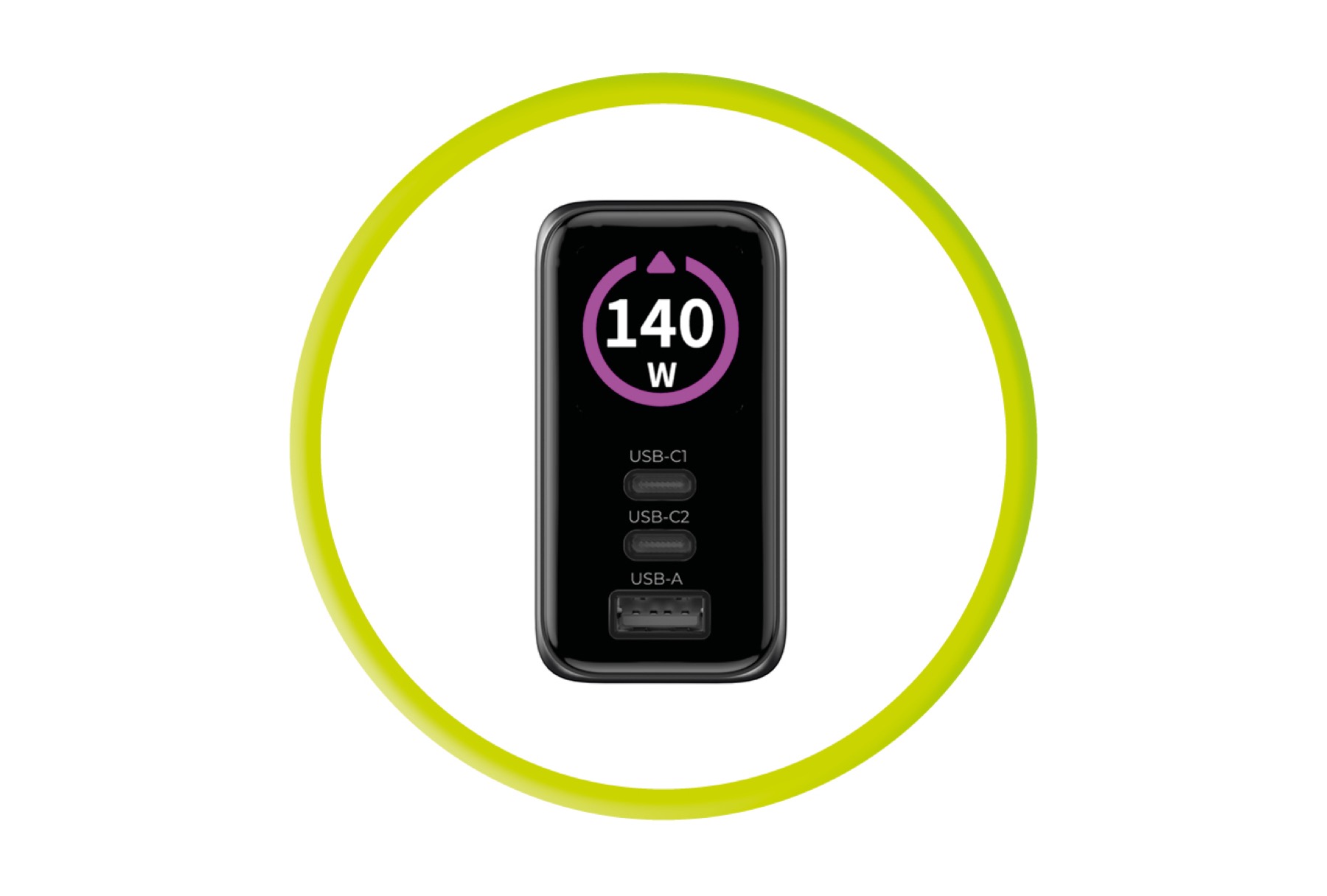

TFT Display

Discover the future of charging with our advanced 140W GaN charger, which combines a compact design with a smart display for instant performance monitoring!

The black rugged case with integrated TFT display allows you to simply press a button to see the current output in real time. Always keep your device charging under control.

Cumulative Usage Time Tracking

This model is equipped with an automatic cumulative usage time tracking function. The system intelligently switches the time units based on how long the device has been in operation,
(if the device is only plugged into a socket in standby mode, the time is not counted), so that you always have a perfect overview of its actual usage.

How to enter the menu?
To view this data, switch the touch button until the "Time of use" interface is displayed. Then, short press it to scroll through the menu.
Instructions for resetting the counter (Time of use)

If you need to reset the measured time, proceed as follows:

- Connect the device to the power supply.
- Perform the next step within the first 5 seconds after turning on (starting) the device.
- Long press the button for 3 seconds.
- This will reset the usage time to the default value.

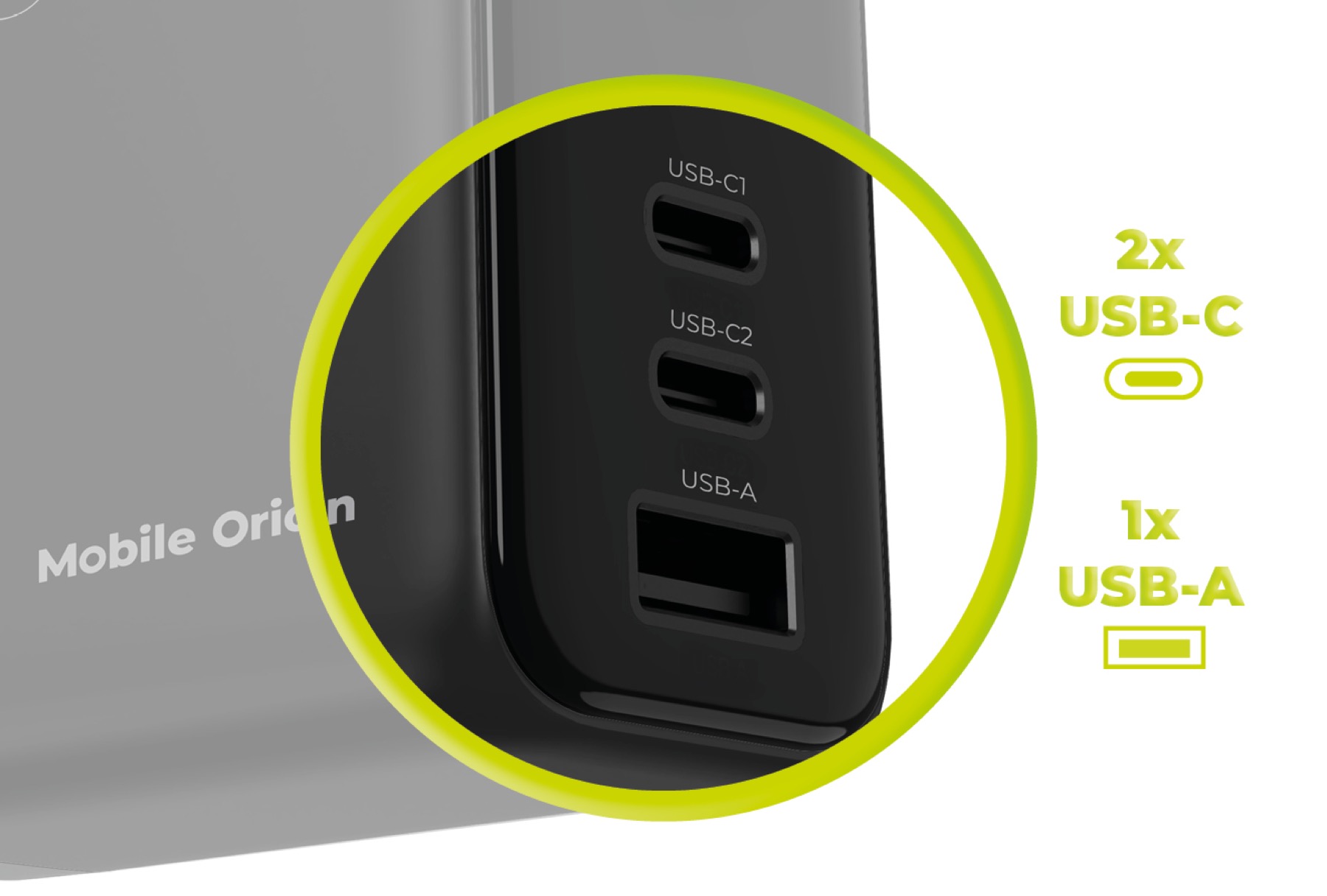

3 Charging Ports

Fast and efficient charging with high-speed 2x USB-C ports and a USB-A port for charging up to three devices simultaneously.

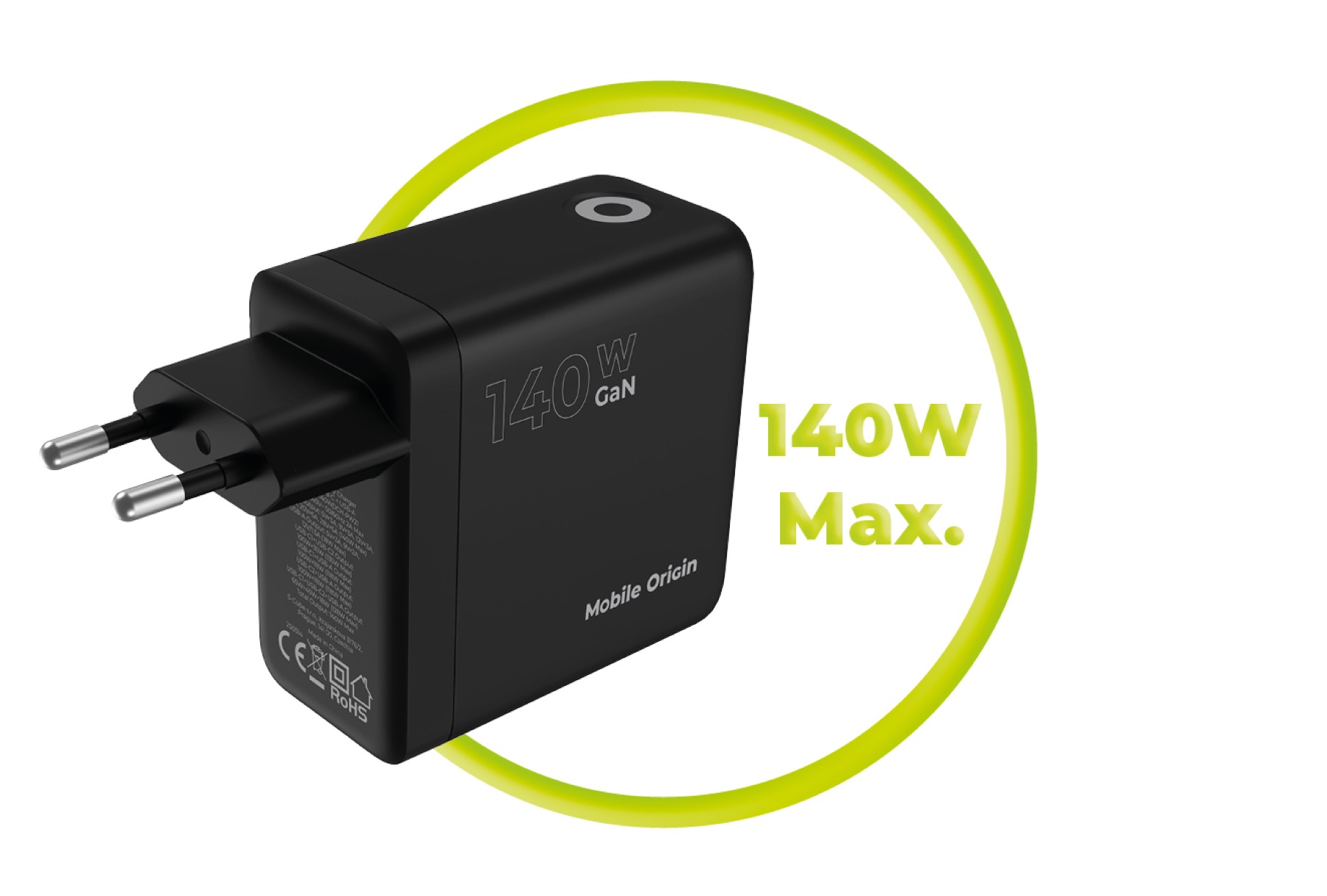

Maximum charging power 140W

Fast charging on the go with 2x USB-C (140W when charging separately) or USB-A (18W). Maximum charging power is 140W.

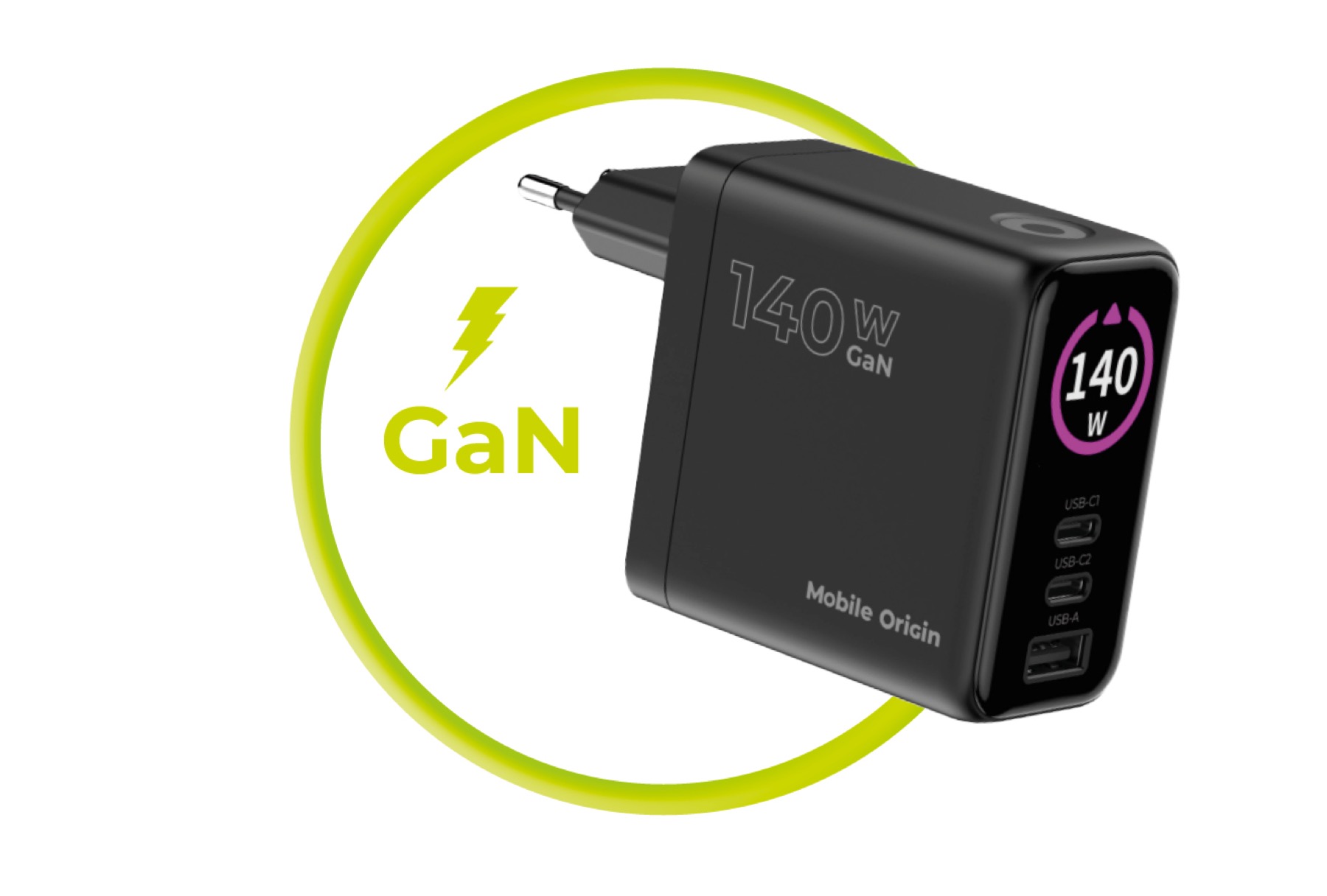

Small but more powerful

Compact, faster and more efficient. This GaN charger delivers high performance with lower heat generation, saves space and charges intelligently.

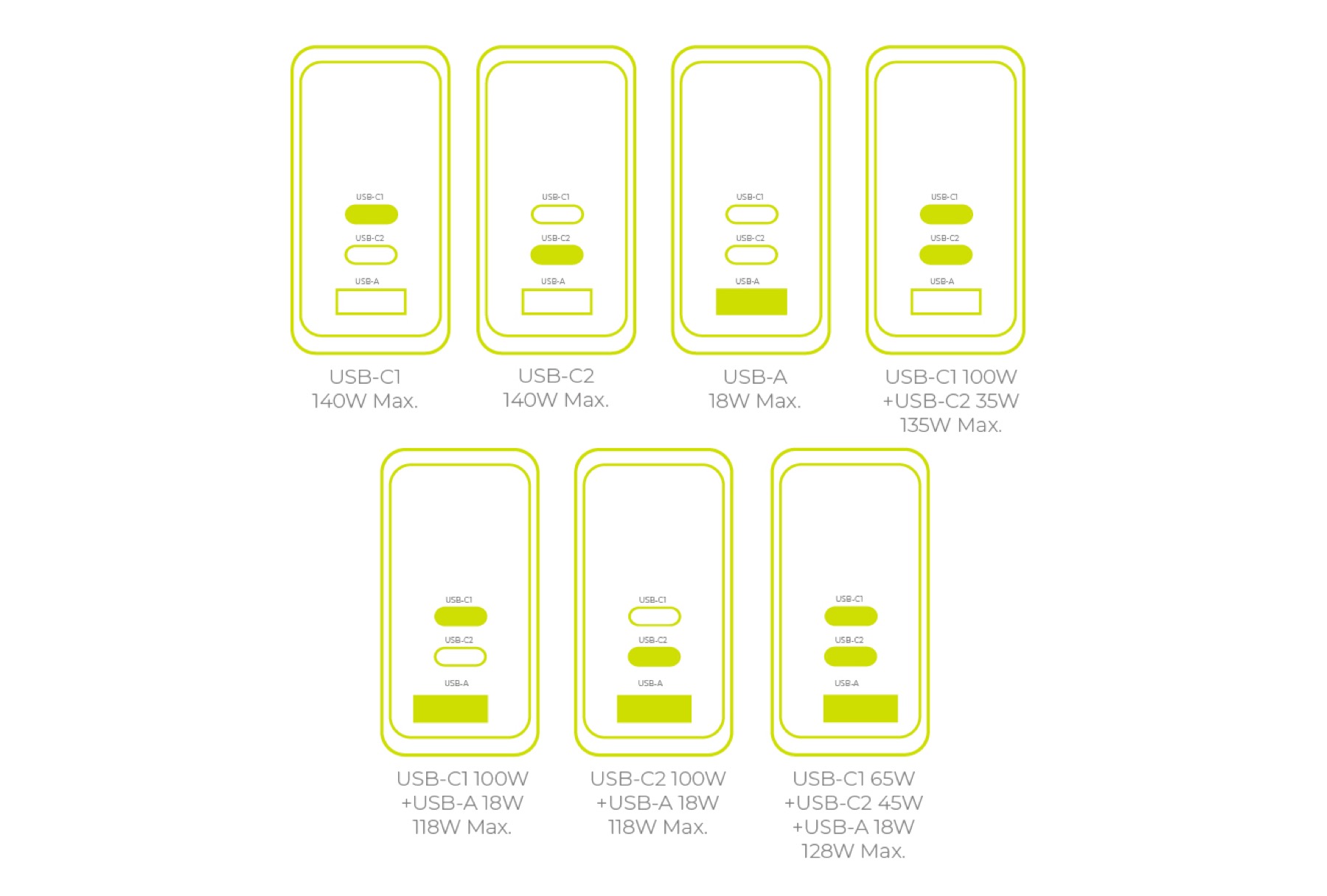

Output power distribution

Specifications

Input:
- 110-240V~50/60Hz 2A

Output:
- 140W Max

USB-C1/C2:
- 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)

USB-A:
- 5V⎓3A, 9V⎓2A, 12V⎓1.5A (18W Max)

USB-C1 + USB-C2:
- 100W+35W (135W Max)

USB-C1 + USB-A:
- 100W+18W (118W Max)

USB-C2 + USB-A:
- 100W+18W (118W Max)

USB-C1 + USB-C2 + USB-A:

-  65W+45W+18W (128W Max)

Charging Protocol:

- USB-C: PD3.1, PPS, Apple2.4A,QC5.0, QC3.0, QC2.0, DCP-1.5A, Samsung AFC, Huawei FCP, Huawei SCP, MTK PE+2.0

- USB-A: Apple2.4A, QC3.0, QC2.0, Samsung 5V-2A, Samsung AFC, Huawei FCP, Huawei SCP, MTK PE+2.0

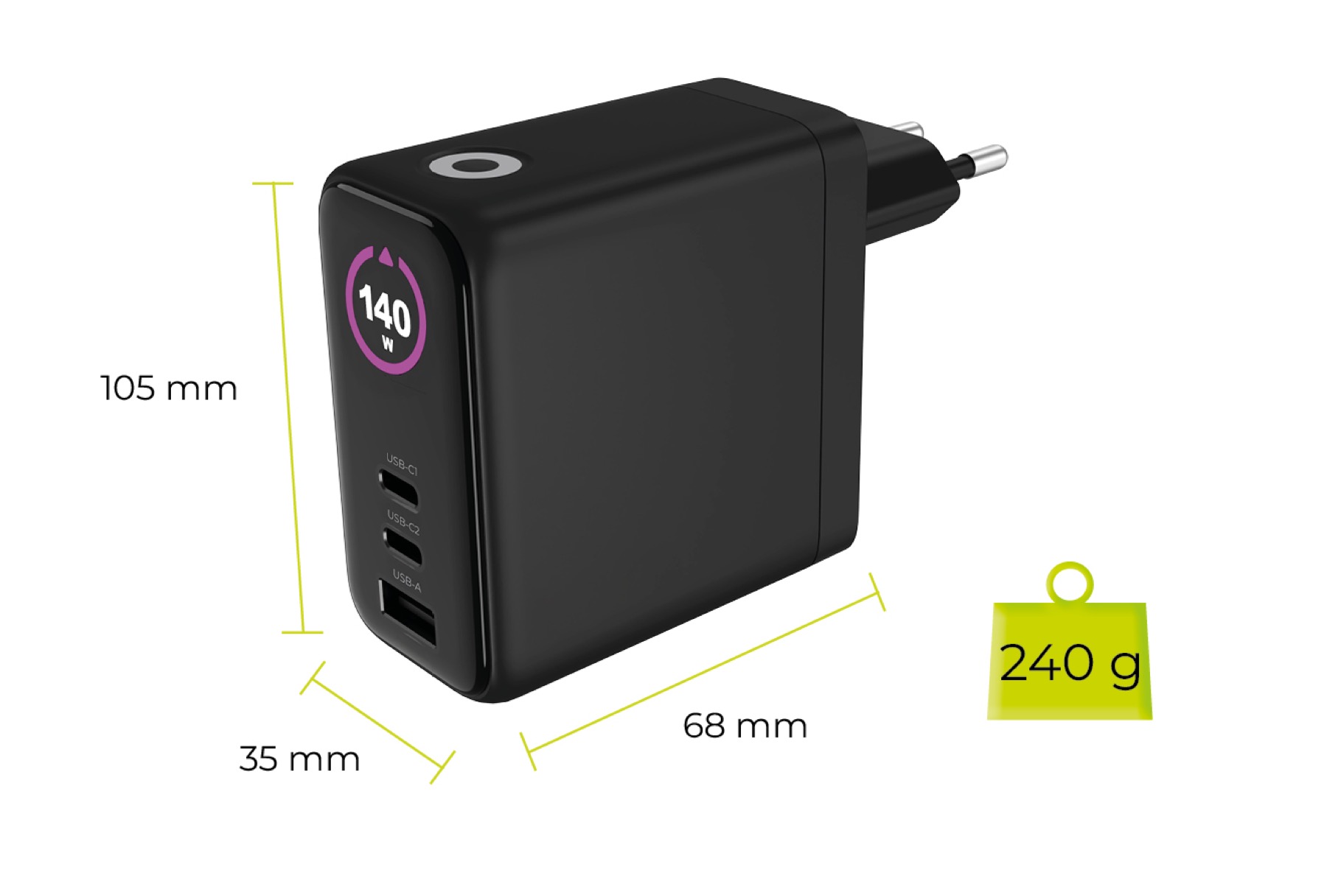

Dimensions:
- 105 x 68 x 35 mm

Weight:
- 240 g

Color:
- Black

Package Contents:
- GaN Power Charger with Display 140W PW21 – 2x USB-C + USB-A
- User Manual


*Charging speed depends on the total power of the charger (W) and the maximum power that the device supports. If the charger provides more power than the device can handle, the output will automatically adjust to avoid damage to the device.
